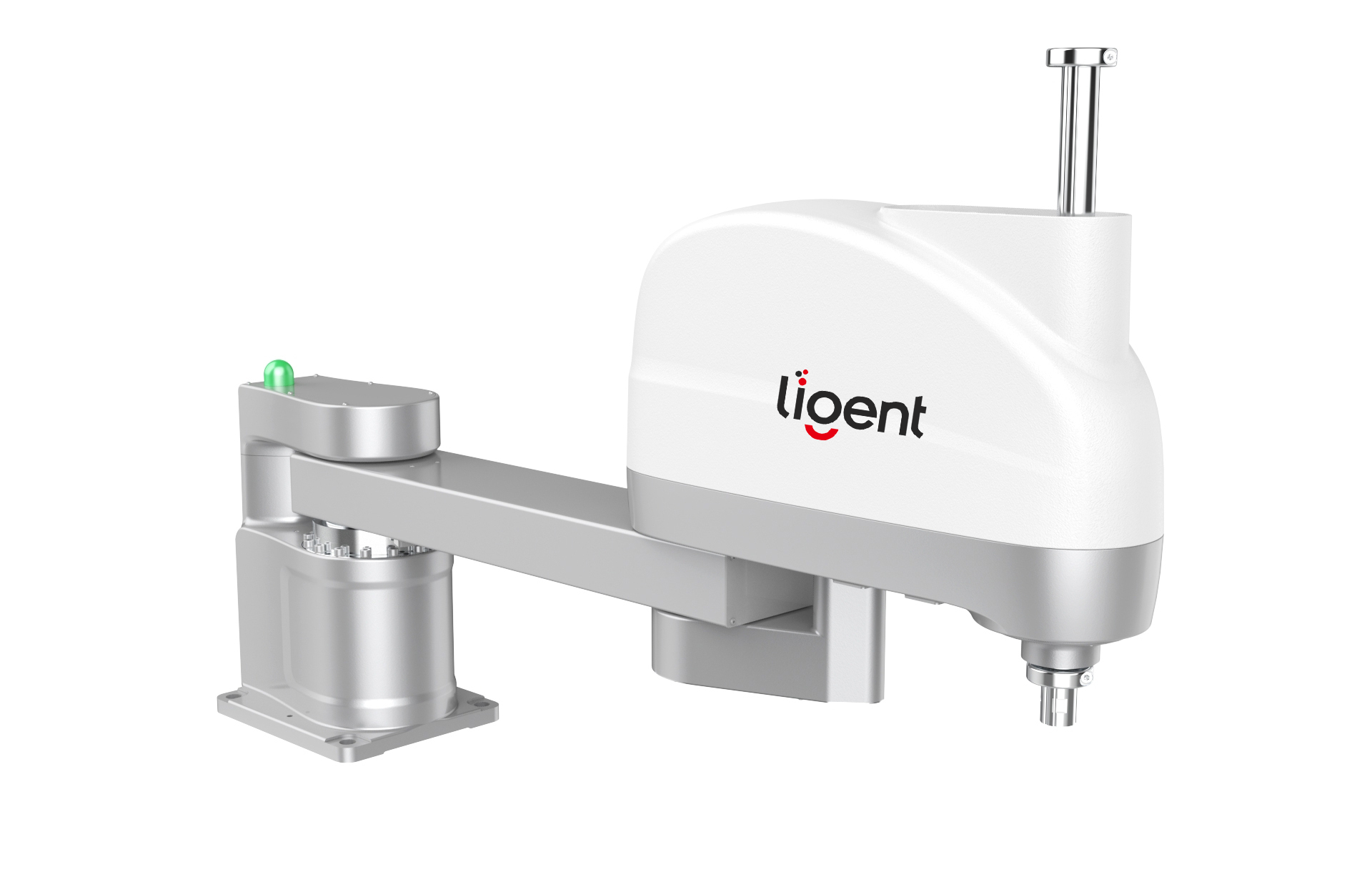

SR12SC-820

Committed to changing and subverting the way people work and creating new trends in the industry

Experience Prototype

SR12SC-820

  • pic

    4 shafts ​​

  • pic

    load 12KG

  • pic

    IP40

  • Working radius

    Working radius

    825MM

  • Payload

    Payload

    12KG

  • Base size

    Base size

    169*196MM

  • Weight

    Weight

    20KG

SR12SC-820, the cycle time of standard door type can reach 0.4 s; it is very suitable for 3C, assembly, installation/insertion/fastening, picking/placement, handling, distribution, gluing/gluing/sealing, up and down in a small space High-precision production operations such as material tool operation. The control system is small in size and provides secondary development interfaces in languages ​​such as C++/Lua/C#/Python, which can quickly develop automation equipment control systems in different industries; it supports WIFI modules to realize data upload, download, and real-time monitoring.

Slim body and lightweight structure design, due to its compact shape and easy programming, it can be easily switched between different tasks to meet flexible generation needs, and we can guarantee its stability even when processing high load at high speed.
Rich algorithms: support for automatic avoidance of singular points on the wrist, one controller to operate multiple robots, anti-collision detection technology, helical interpolation, fast-moving anti-vibration technology for long objects, etc. Deep algorithm optimization.
Extremely high repeat positioning accuracy: high precision, fast sorting.
High speed and high output: thanks to the core calculations of the powerful controller, and thus extremely high output
Fast and precise: the path accuracy is optimized, making the cycle speed operation fast and accurate, and completing any depalletizing operation at full speed with higher precision.

It takes 20 minutes to complete the installation after opening the box, and it can be put into use in 1 hour

LIGENT series robots, simple design, simple wiring; flexible deployment, time-saving and efficient

learn more
Our industrial robots are often used in 3C, assembly, installation/insertion/fastening, picking/placement, handling, distribution, gluing/gluing/sealing, loading and unloading, tool operation, etc.; with improved controller structure and fine Algorithms for higher efficiency and economic benefits.
