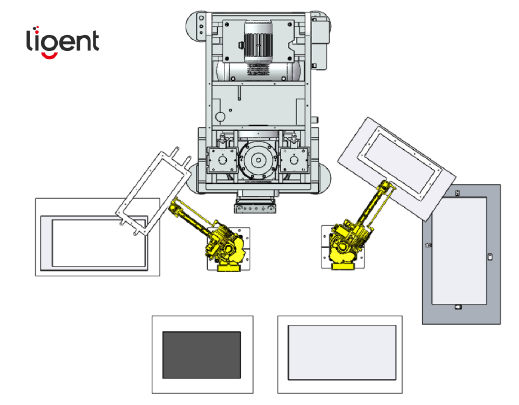

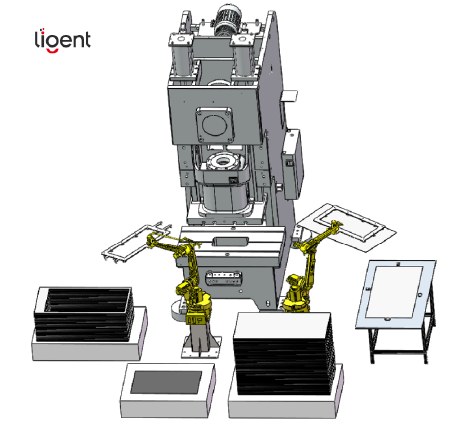

LIGENT robot stamping loading and unloading project

LIGENT Robot is responsible for the robot body and robot gripper, manufacturing, installation, and debugging turnkey projects of the robot punch loading and unloading project, as well as the training and after-sales maintenance of robot-related personnel.

Product parameters:

1.Product material: Stainless steel

2.Thickness of sheet: 2cm

3.Sheet length: 1380mm

4.Sheet width: 700mm

5.Sheet weight: 5kg

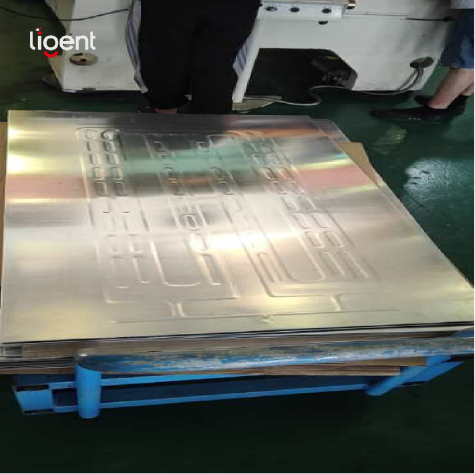

6.The shape of the workpiece is as shown below

Production environment requirements:

System main power supply: three-phase four-wire system, voltage: AC 220V±10%, frequency: 50Hz, capacity: 10KVA

Working air pressure: not less than 0.6Mpa, flow rate: not less than 0.5 cubic meters/min

System installation environment:

a. Temperature: 0-45℃

b. Humidity: usually 20%~75%RH (no condensation), short-term below 95%RH (no condensation)

c. Vibration: below 4.9 m/s2(0.5G)

d. Ground load: 7t/m2

e. Total grounding resistance value: no more than 1 Ω

f. No hidden dangers from flammable, explosive or corrosive gases or liquids

Learn more about the benefits of automation

Our LIGENT series of robots can bring game-changing benefits to your business

Problems Solved by LIGENT

LIGENT robots can be used for most packaging and palletizing applications. Our robots save space and can be quickly reprogrammed.
Free workers from repetitive tasks that hinder their productivity.
With the LIGENT robotic arm, you can free your workers for more responsible work tasks.
Reduce operating costs. LIGENT Robots lets you experience all the benefits of robotic automation without the traditional additional costs associated with robot programming, setup, and dedicated shielded work cells. The average ROI of 195 days is among the highest in the robotics industry.

Get Started Now

Used in the daily production and manufacturing of automobiles, 3c electronics, metal processing, plastics and chemicals, food and beverage, biopharmaceuticals and other industries; rich categories can enable the company to overcome labor shortages, lack of productivity or quality assurance. Dedicate its human resources to more value-added tasks.
